Specs

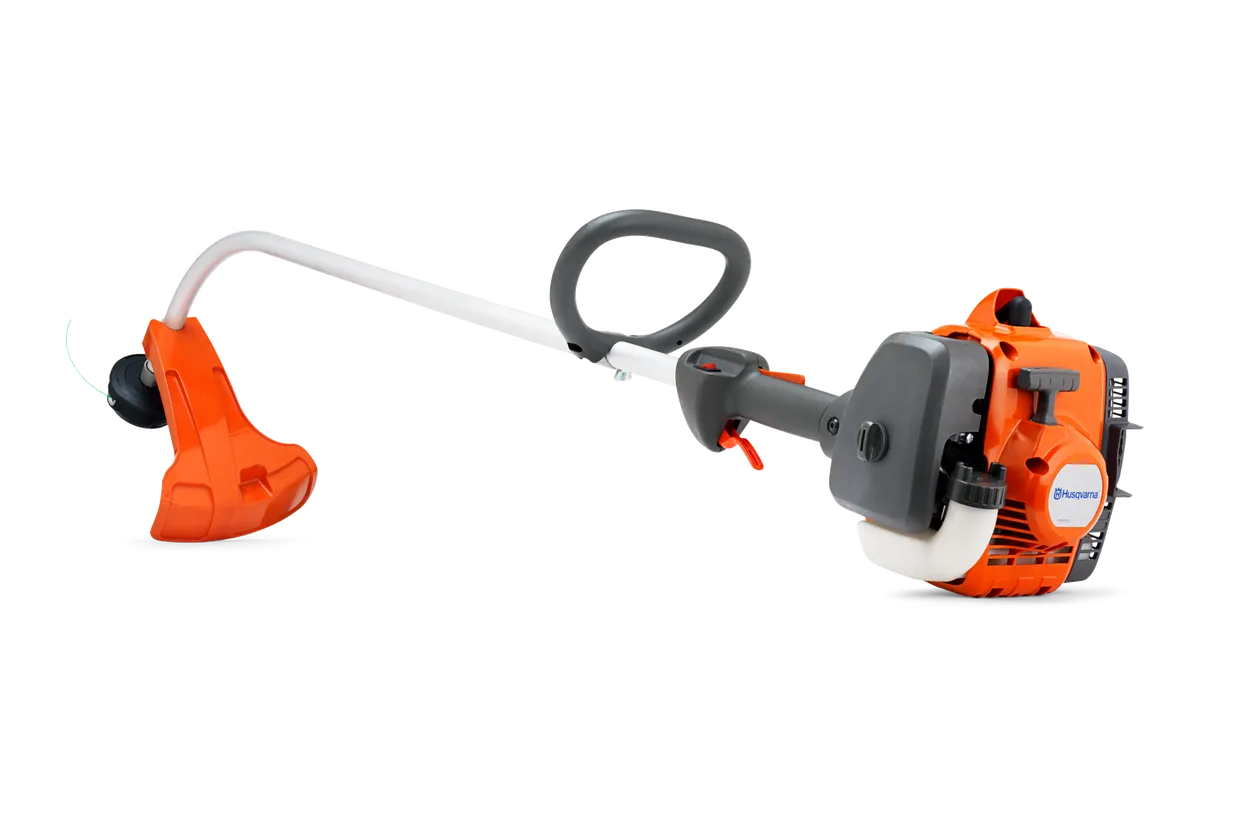

22cc, Curved Shaft TrimmerArt no: 966 71 27‑01 | |
|---|---|
| Vibration | 22cc, Curved Shaft Trimmer Art no: 966 71 27‑01 |
| Equivalent vibration level (ahv, eq) left handle | 5 m/s² |
| Equivalent vibration level (ahv, eq) right handle | 3.6 m/s² |
| Equivalent vibration level (ahv, eq) front handle | 5 m/s² |
| Equivalent vibration level (ahv, eq) rear handle | 3.6 m/s² |
| Capacity | |
| Cutting width | 17 in |
| Dimensions | |
| Weight (excl. cutting equipment) | 9.7 lbs |
| Product size length | 59.4 in |
| Product size width | 9.4 in |
| Tube length | 54.37 in |
| Product size height | 14.8 in |
| Tube diameter | 1 in |
| Emission | |
| Exhaust emissions (CO average) | 230.89 g/kWh |
| Exhaust emissions (CO average) | 254.87 g/kWh |
| Exhaust emissions (CO average) | 254.87 g/kWh |
| Engine | |
| Cylinder displacement | 1.3 cu.inch |
| Power output | 0.8 hp |
| Maximum power speed | 7,800 rpm |
| Fuel tank volume | 12.2 fl oz |
| Fuel consumption | 630 g/kWh |
| Fuel consumption | 0.79 lbs/h |
| Idling speed | 2,900 rpm |
| Spark plug | Husqvarna HQT-4 672201 |
| Electrode gap | 0.02 in |
| Torque, max. at rpm | 6,000 rpm |
| Torque, max. | 0.8 Nm |
| Clutch engagement speed (±120) | 4,200 rpm |
| Maximum rpm output shaft | 10,000 rpm |
| Equipment | |
| Grass blade | Not included |
| Harness | Not included |
| Trimmer head | T25 (R) |
| Saw blade | Not included |
| Lubricant | |
| Lubricant type (Engine) | Husqvarna 2 stroke or equiv. at 50:1 |
| Sound and Noise | |
| Sound pressure level at operators ear | 88 dB(A) |
| Sound power level, guaranteed (LWA) | 104 dB(A) |
| Transmission | |
| Gear ratio | 1.1 |
