Specs

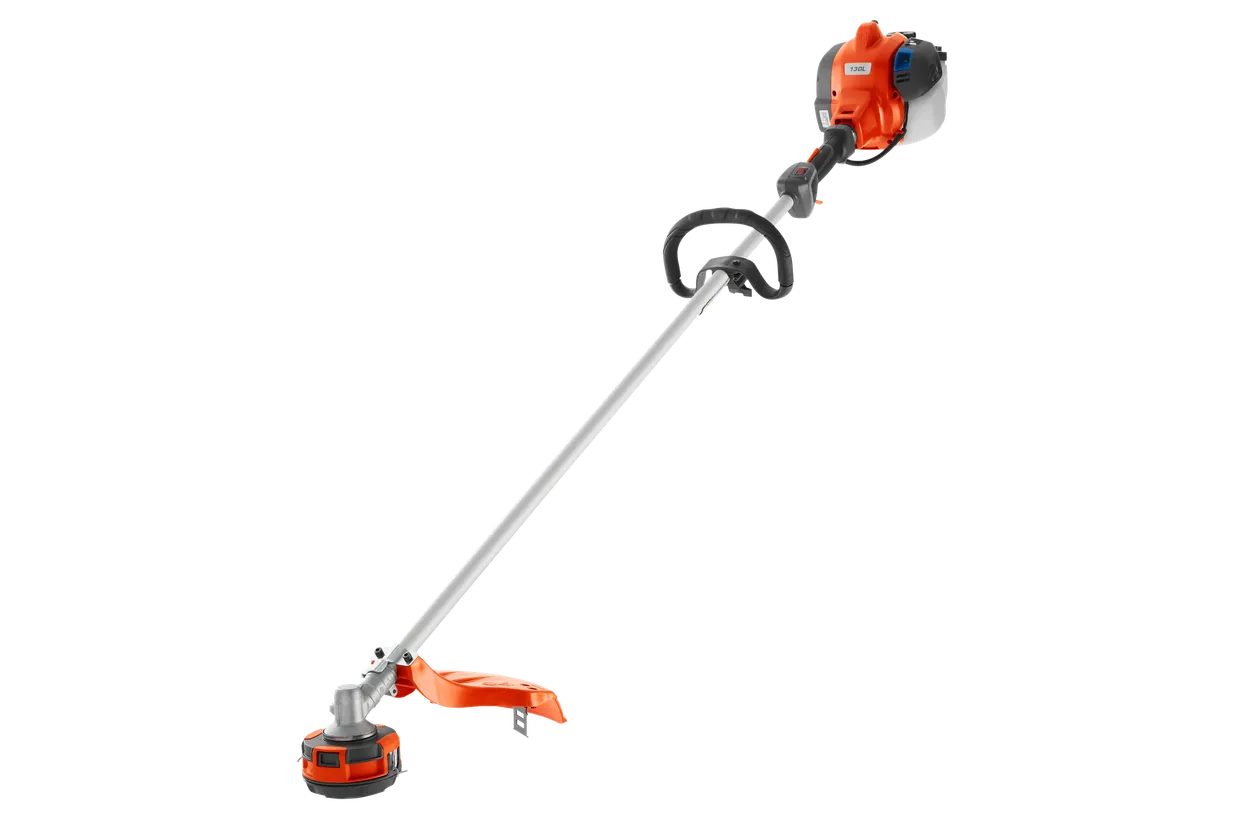

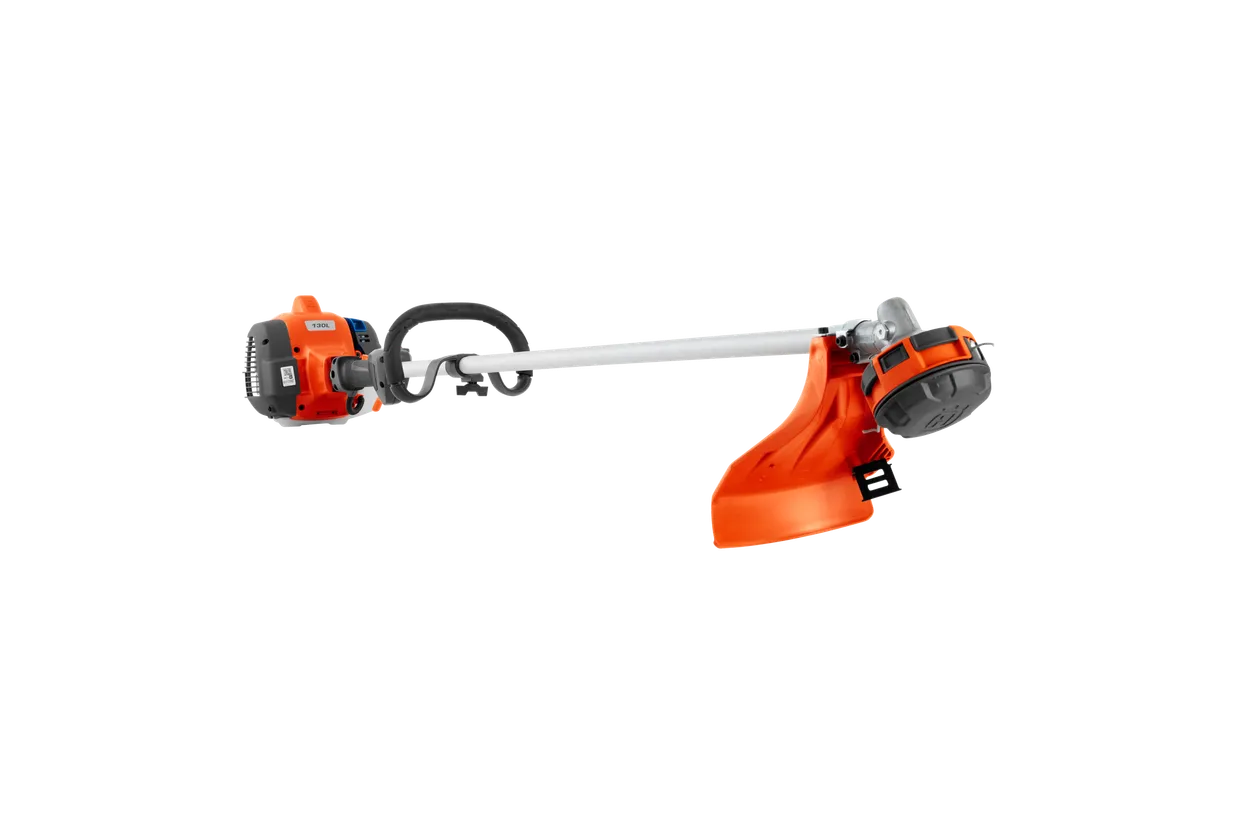

130L TRIMMER 28cc straight shaft FA, single packSKU: 970 51 44‑02 | |
|---|---|
| Vibration | 130L TRIMMER 28cc straight shaft FA, single pack SKU: 970 51 44‑02 |
| Equivalent vibration level (ahv, eq) front handle | 5.66 m/s² |
| Equivalent vibration level (ahv, eq) rear handle | 8.93 m/s² |
| Capacity | |
| Cutting width | 18 in |
| Dimensions | |
| Weight (excl. cutting equipment) | 12.2 lbs |
| Product size length | 70 in |
| Product size width | 9.5 in |
| Tube length | 58.386 in |
| Product size height | 10 in |
| Tube diameter | 0.945 in |
| Emission | |
| Exhaust emissions (CO average) | 0 g/kWh |
| Exhaust emissions (CO average) | 128.59 g/kWh |
| Exhaust emissions (CO average) | 70.32 g/kWh |
| Engine | |
| Cylinder displacement | 1.7 cu.inch |
| Power output | 1 hp |
| Maximum power speed | 8,000 rpm |
| Fuel tank volume | 17.82 fl oz (US) |
| Fuel consumption | 543 g/kWh |
| Idling speed | 3,000 rpm |
| Spark plug | Champion QCJ-8Y |
| Electrode gap | 0.02 in |
| Torque, max. at rpm | 7,000 rpm |
| Torque, max. | 0.95 Nm |
| Clutch engagement speed (±120) | 4,200 rpm |
| Maximum rpm output shaft | 7,184 rpm |
| Equipment | |
| Grass blade | Not included |
| Harness | Not included |
| Saw blade | Not included |
| Lubricant | |
| Lubricant type (Engine) | Husqvarna 2 stroke or equiv. at 50:1 |
| Sound and Noise | |
| Sound pressure level at operators ear | 95.4 dB(A) |
| Sound power level, guaranteed (LWA) | 116 dB(A) |
| Transmission | |
| Gear ratio | 0.684 |
| Drive gear angle | 60 ° |
