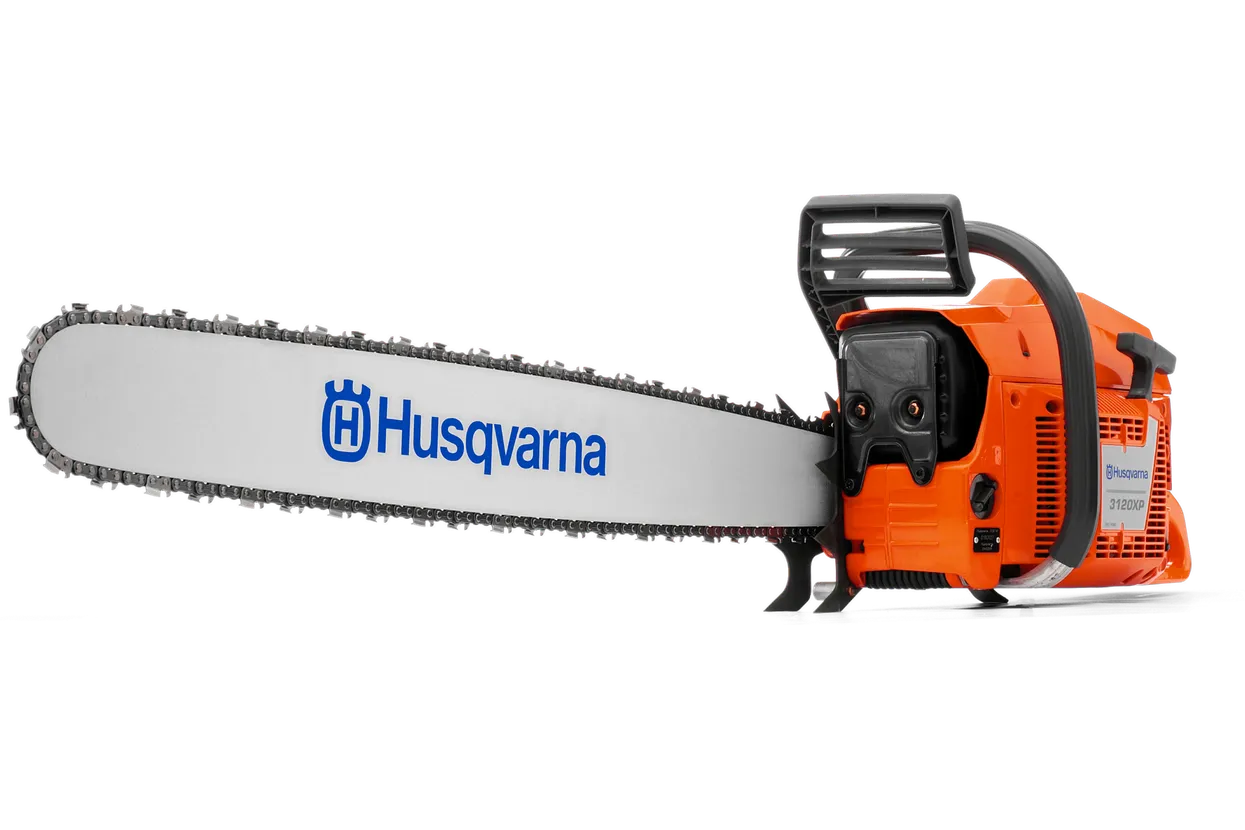

Husqvarna 3120 XP®

Contact us for price

Stock status: Call Store for Availability

Husqvarna’s largest chainsaw is one of the most powerful in the world. The primary applications for the 3120 XP® are extreme logging, portable saw mills and stump work. This saw is designed to pull the chain on our longest bars– up to six feet! Like all Husqvarna chainsaws, the 3120 XP® has a superior power-to-weight ratio. Thanks to Smart Start®, LowVib™ and other premium features, this heavy-duty chainsaw is surprisingly easy to start and operate.
Call Us Now


Powerhead Only

SKU: 965 96 07‑01

Powerhead Only
SKU: 965 96 07‑01
Chain speed at max power65.9 fts
Cylinder displacement118.8 cm³
Power output1
8.4 hp
Torque, max.7.7 Nm
Torque, max. at rpm6,000 rpm
Clutch engagement speed (±120)3,400 rpm
Electrode gap0.02 in
Idling speed2,500 rpm
Ignition module air gap0.01 in
Maximum power speed9,000 rpm
Oil pump capacity, max54 ml/min
Oil pump capacity, min30 ml/min
Oil pump typeAutomatic
Spark PlugChampion RCJ7Y, NGK BPMR7A
Recommended bar length, min24 in
Recommended bar length, max42 in
Chain type--
Bar length0 cm
Bar length (inch)0 in
Sprocket typeRim 7
Weight (excl. cutting equipment)22.9 lbs
Sound and noise
Sound pressure level at operators ear102 dB(A)
Sound power level, guaranteed (LWA)116 dB(A)
Sound power level, measured115 dB(A)
Equivalent vibration level (ahv, eq) rear handle7.8 m/s²
Equivalent vibration level (ahv, eq) front handle6.7 m/s²
Oil tank volume1.48 US pint
Lubricant type (Engine)Husqvarna 2 stroke or equiv. at 50:1
