Specs

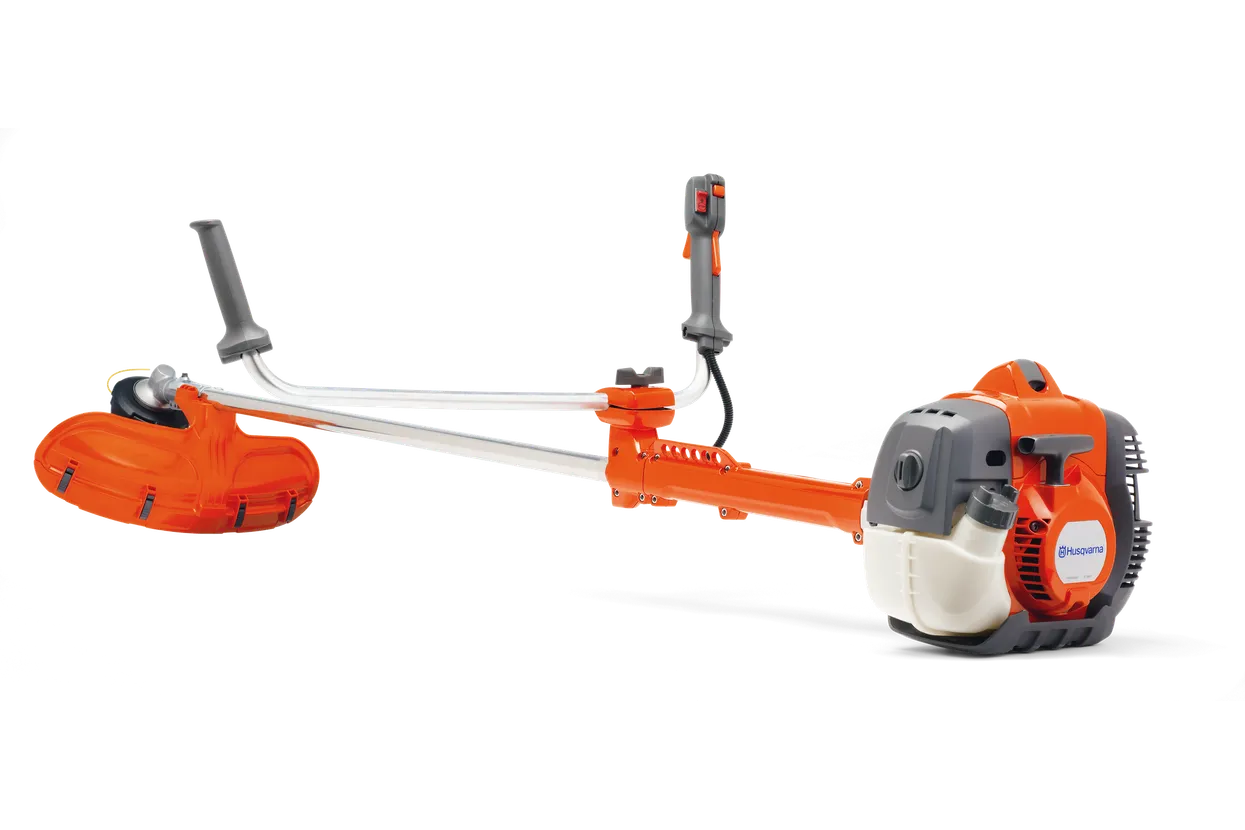

336FRArt no: 966 60 47‑04 | |
|---|---|
| Engine | 336FR Art no: 966 60 47‑04 |
| Torque, max. | 1.8 Nm |
| Torque, max. at rpm | 6,600 rpm |
| Cylinder displacement | 2.1 cu.inch |
| Power output | 1.9 hp |
| Maximum power speed | 8,400 rpm |
| Fuel tank volume | 20.3 fl oz |
| Fuel consumption | 435 g/kWh |
| Idling speed | 2,900 rpm |
| Electrode gap | 0.02 in |
| Clutch engagement speed (±120) | 3,800 rpm |
| Maximum rpm output shaft | 8,220 rpm |
| Output shaft thread | M12x1.75V |
| Transmission | |
| Gear ratio | 1.4 |
| Drive gear angle | 35 ° |
| Dimensions | |
| Weight (excl. cutting equipment) | 15.4 lbs |
| Tube length | 58.386 in |
| Tube diameter | 1.1 in |
| Equipment | |
| Grass blade | Multi 300-3 |
| Harness | Balance 35 |
| Trimmer head | R25 |
| Saw blade | Scarlett 200-22 |
| Lubricant | |
| Lubricant type | Husqvarna 2 stroke or equiv. at 50:1 |
| Lubricant type (bevel gear) | Mineral grease |
| Sound and Noise | |
| Sound power level, guaranteed (LWA) | 113 dB(A) |
| Sound power level, measured | 112 dB(A) |
| Sound pressure level at operators ear | 98 dB(A) |
| Emission | |
| Exhaust emissions (HC average) | 40.51 g/kWh |
| Exhaust emissions (HC average) | 29.31 g/kWh |
| Exhaust emissions (HC average) | 29.31 g/kWh |
| Exhaust emissions (CO average) | 418.31 g/kWh |
| Exhaust emissions (CO average) | 243.69 g/kWh |
| Exhaust emissions (CO average) | 243.69 g/kWh |
| Exhaust emissions (NOx average) | 0.46 g/kWh |
| Exhaust emissions (NOx average) | 1.09 g/kWh |
| Exhaust emissions (NOx average) | 1.09 g/kWh |
