Specs

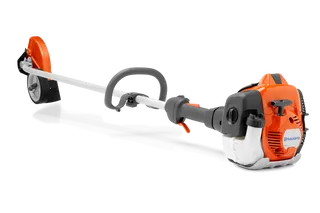

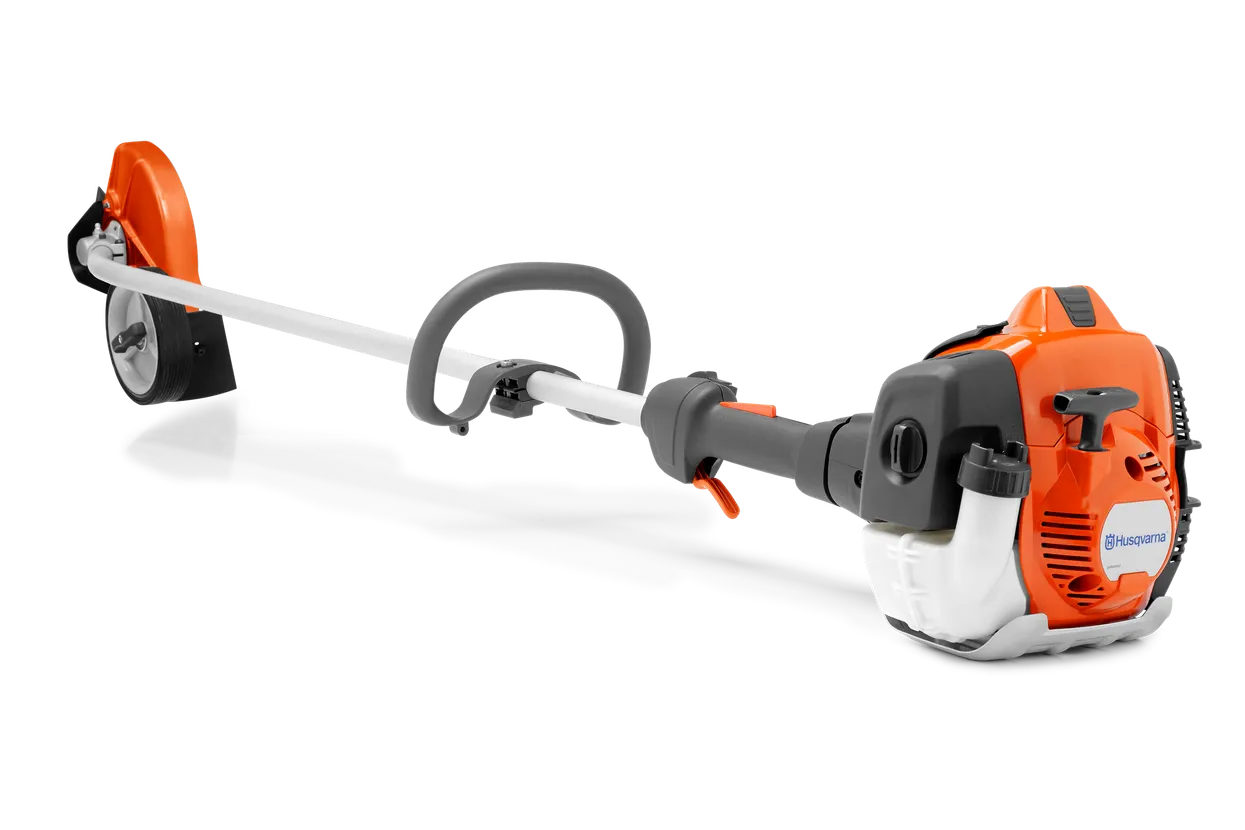

525ECS EDGER US/CASKU: 967 17 60‑01 | ||
|---|---|---|
| Approval | 525ECS EDGER US/CA SKU: 967 17 60‑01 | Lowe's Trimmer Bay SKU: 967 17 60‑02 |
| Homeowner Warranty | 2 Years | 2 Years |
| Commercial Warranty | 2 Years | 2 Years |
| Dimensions | ||
| Weight (excl. cutting equipment) | 13.9 lbs | 13.9 lbs |
| Product size length | 68.9 in | 68.9 in |
| Product size width | 11.1 in | 11.1 in |
| Product size height | 11.8 in | 11.8 in |
| Tube length | 59.055 in | 59.055 in |
| Tube diameter | 0.9 in | 0.9 in |
| Engine | ||
| Cylinder displacement | 1.55 cu.inch | 1.55 cu.inch |
| Power output | 1.34 hp | 1.34 hp |
| Maximum power speed | 8,500 rpm | 8,500 rpm |
| Fuel tank volume | 17.3 fl oz | 17.3 fl oz |
| Fuel consumption | 600 g/kWh | 600 g/kWh |
| Idling speed | 3,000 rpm | 3,000 rpm |
| Lubricant | ||
| Lubricant type (bevel gear) | Mineral grease | Mineral grease |
| Sound and Noise | ||
| Sound pressure level at operators ear | 94 dB(A) | 94 dB(A) |
| Transmission | ||
| Drive gear angle | 30 ° | 30 ° |
| Vibration | ||
| Equivalent vibration level (ahv, eq) front handle | 4.2 m/s² | 4.2 m/s² |
| Equivalent vibration level (ahv, eq) rear handle | 9.1 m/s² | 9.1 m/s² |
