Specs

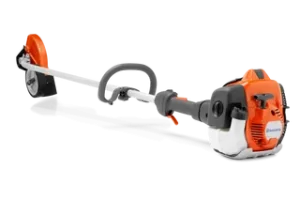

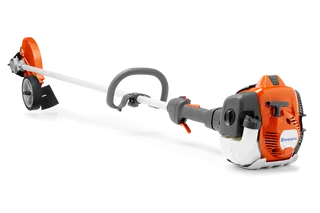

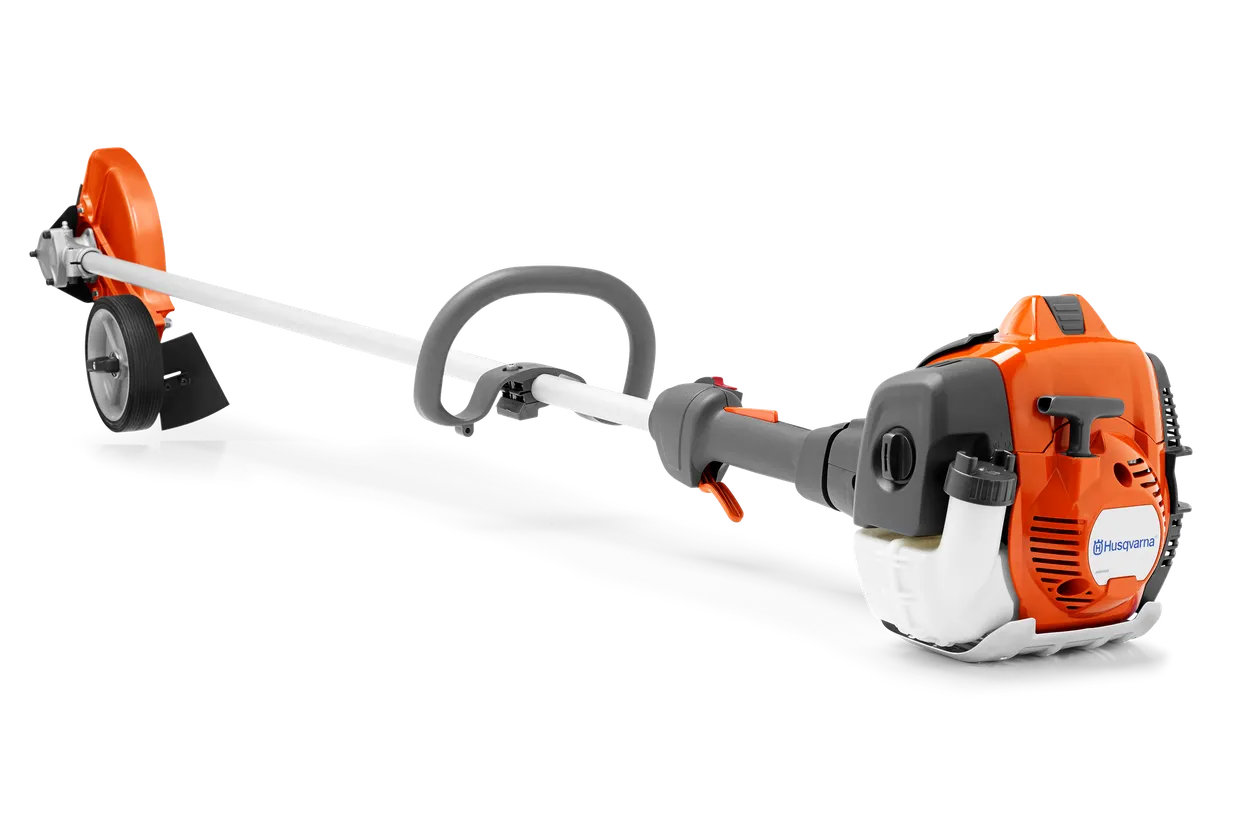

525ES EDGER US/CASKU: 967 17 59‑01 | |
|---|---|
| Dimensions | 525ES EDGER US/CA SKU: 967 17 59‑01 |
| Tube diameter | 0.9 in |
| Weight (excl. cutting equipment) | 14.3 lbs |
| Tube length | 58.386 in |
| Product size height | 12.4 in |
| Product size length | 69.2 in |
| Product size width | 9.1 in |
| Engine | |
| Cylinder displacement | 1.55 cu.inch |
Power output | 1.34 hp |
| Fuel tank volume | 17.3 fl oz |
| Fuel consumption | 600 g/kWh |
| Maximum power speed | 8,500 rpm |
| Idling speed | 3,000 rpm |
| Maximum rpm output shaft | 3,740 rpm |
| Equipment | |
| Grass blade | Edger blade 195-2 |
| Harness | Not included |
| Lubricant | |
| Lubricant type (bevel gear) | Mineral grease |
| Sound and noise | |
| Sound pressure level at operators ear | 94 dB(A) |
| Transmission | |
| Drive gear angle | 90 ° |
| Vibration | |
| Equivalent vibration level (ahv, eq) front handle | 4.2 m/s² |
| Equivalent vibration level (ahv, eq) rear handle | 9.1 m/s² |
