Specs
Engine
<!-- -->
Engine Name
Kawasaki FX1000E
Horsepower
38.5HP
Fuel Capacity
9.5gal
Drive Line
<!-- -->
Hydraulic Drive
Parker HTG Transaxles - 16cc Drive Motors
Hydraulic Drive Torque
Continuous - 498 ft-lb | Max Torque - 587 ft-lb
Hydro Drive Maintenance
1000 Hours Between Oil Changes
Drive Tires
61" , 72" - 24x12-R12 Radial
Front Tires
13x6.5-R6 Radial with Optional No Flats, or Tweels
Wheels Type
Aluminum rear wheels and front hub covers
Speed (F/R)
Forward - Up to 13mph | Reverse - Up to 5mph
Features
<!-- -->
Seat
Smart Ride Technology w/ full suspension seat - adjustable TecsPak Elastomer supports - 360 degree floating seat platform - indepentant rear frame section suspended by Winamac coil springs
Steering Levers
Soft-Touch Knobs to Adjust Forward and Back. Adjustable Up and Down
Control Panel LCD Display
N/A
Control Panel LED Warning Indicators
N/A
Ignition
Key Switch
Auxiliary Power
12v Outlet Next to Phone Holder
Storage
Phone Holder, Cup Holder, and Deep Storage Tray

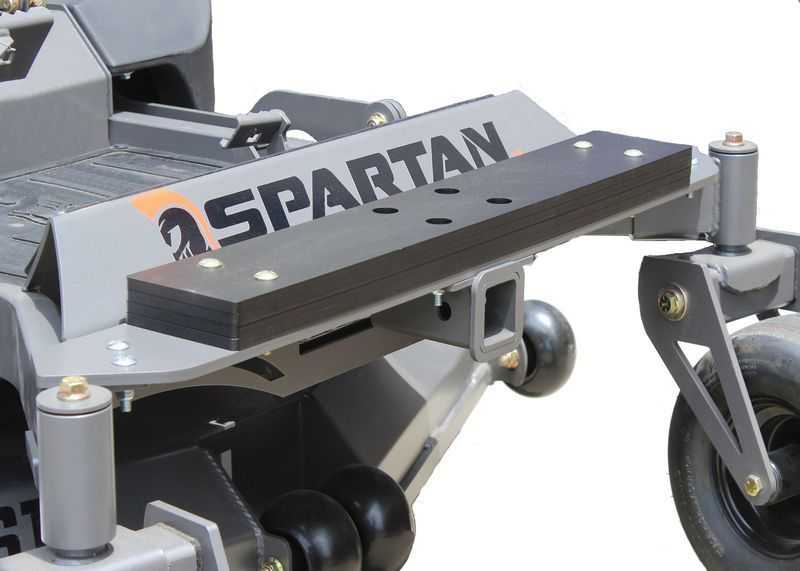

Hitch
2" Rear Receiver Standard
Cutting Deck
<!-- -->
Deck Sizes
61”, 72”
Deck Depth
6" Deep, Reinforced 7 Gauge Full-Floating Deck
Deck Lift
Foot Operated with Shock Assist
Deck Adjustment
Magnetic Pin Height Adjustment
Cut Height
1" to 5" with 15 Cut Heights
Blade Spindles
Cast Aluminum, No Maintenance/Sealed Bearings
Parking Brake
Foot Operated
Frame
1.5" by 3" Powder Coated Fusion-Bonded Solid Steel Bridge Frame
Measurements
<!-- -->
Width
61” Deck - 62.5” Wide | 72” Deck - 73.5” Wide
Weight
61” Deck - 1290lbs | 72” Deck - 1323lbs
Length
84”
Height
75" with ROPS Up - 54" with Folding ROPS Down
Warranty
<!-- -->
Engine Warranty
3 Year
Full Warranty
3 Year / 500 Hours Residential - 2 Year / Unlimited Hour Commercial - 120 Day Belt Warranty
Deck Warranty
Lifetime on the leading edge
Hydraulic Drive Warranty
3 Year / 1500 Hour
Control Panel Warranty
N/A
