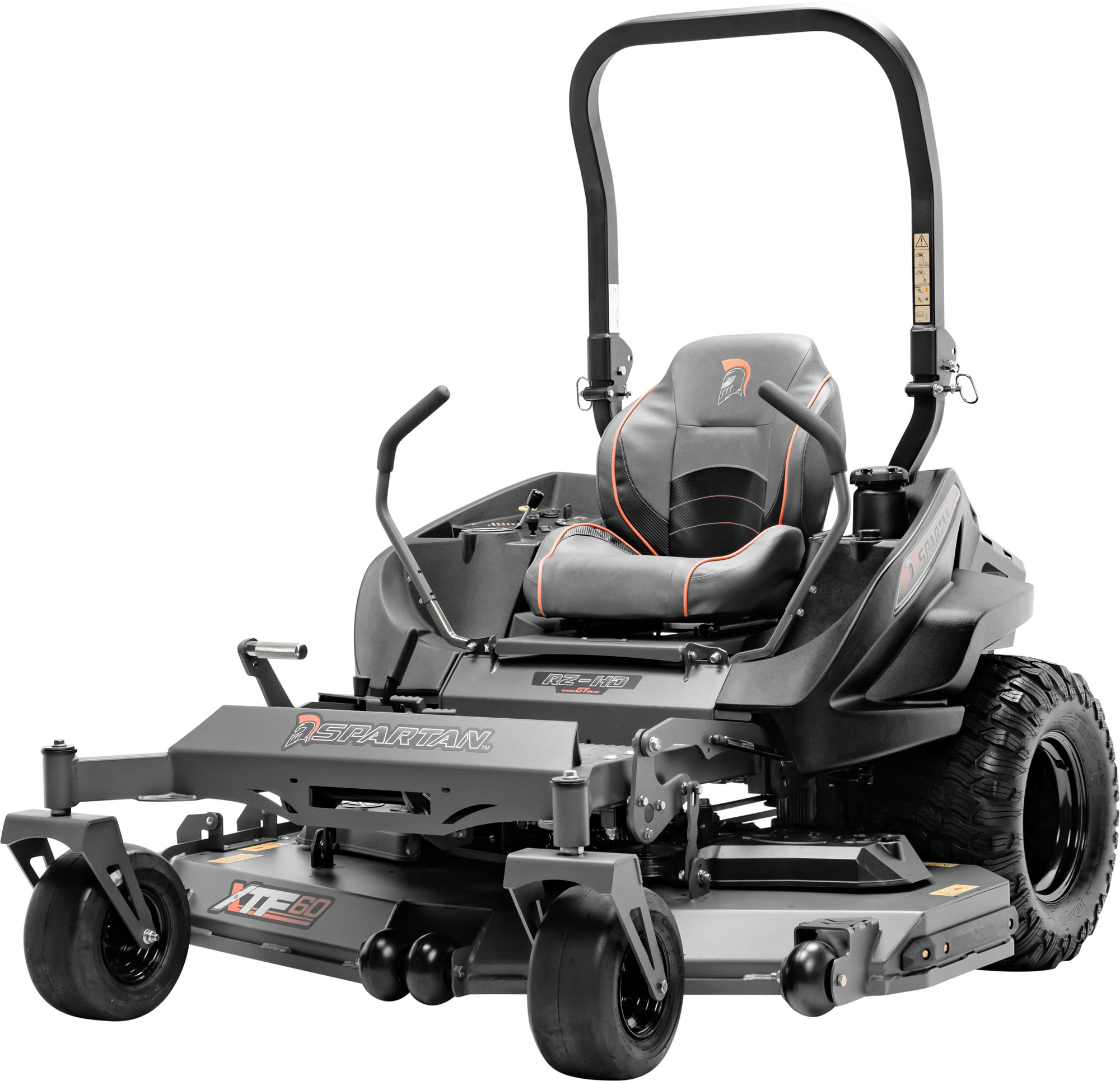

Spartan RZ-HD

$7,569.00*

* Prices subject to change. Prices do not include applicable setup or delivery fees. Please contact us for latest pricing.

Contact us for price

Stock status: Call Store for Availability

The RZ-HD is patterned after the big guys with 5” deep 7 gauge XTF decks, ROPS, 22” rear radials, Parker hydraulic transmissions, and the Spartan signature styling. Everyone loves the looks and can’t deny the performance.

  • 22” Rear Radial Drive Tires
  • 5” Deep Deck
  • 9 mph Top Speed
  • 7 Gauge Decks
  • Folding ROPS
  • 9.5 gal Fuel Tank
  • 18,500 FPM Blade Tip Speed
  • Parker HTE 10cc Transmissions

Three deck sizes (48″, 54″ and 61″) and four engine options (Briggs 25 hp, Briggs 27 hp, Kawasaki FR691 23 hp, Kawasaki FR730 24 hp). The RZ-HD is an excellent choice for large or small yards. Test drive one today at your nearest Spartan dealer.

Call Us Now

Specs

Engine Name
Kawasaki FR691V
Horsepower
23HP
Fuel Capacity
9.5gal
Hydraulic Drive
Parker HTE Transaxles - 10cc Drive Motors
Hydraulic Drive Torque
Continuous - 262 ft-lb | Max Torque - 406 ft-lb
Hydro Drive Maintenance
1,000 Hours Between Oil Change
Drive Tires
48" - 22x10-R10 Radial | 54" - 22x12 - R10 Radial
Front Tires
13x6.5-R6 Smooth Tread with Optional Radial Upgrade
Wheels Type
Steel
Speed (F/R)
Forward - Up to 9mph | Reverse - Up to 5mph
Seat
360 Degree Floating Seat Platform
Steering Levers
Adjustable Up and Down
Control Panel LCD Display
Engine Hour Meter - Mower Deck Hour Meter - Tachometer - Low Level Warning Volt Meter - Time Between Oil Change Countdown - Fault Codes
Control Panel LED Warning Indicators
Parking Brake Set - Drive Levers - Operator Present - PTO - Low/Hi Battery Volts - Low Oil PSI
Ignition
Keyless, Personal Code activated
Auxiliary Power
12v Outlet
Storage
Phone Holder, Cup Holder, and Deep Storage Tray
Hitch
N/A
Deck Sizes
48", 54"
Deck Depth
5" Deep, Reinforced 7 Gauge Full-Floating Deck
Deck Lift
Foot Operated with Shock Assist
Deck Adjustment
Change-On-The-Go Precision Deck Height Dial
Cut Height
Quick Adjust Dial from 1" to 5" with 15 Cut Heights
Blade Spindles
Cast Aluminum, No Maintenance/Sealed Bearings
Parking Brake
Foot Operated
Frame
1.5" by 3" Powder Coated Fusion-Bonded Solid Steel Bridge Frame
Width
48” Deck - 49.5” Wide | 54” Deck - 55.5” Wide
Weight
48” - 922lbs | 54” - 942lbs
Length
84"
Height
75" with ROPS Up - 54" with Folding ROPS Down
Engine Warranty
3 Year
Full Warranty
3 Year / 400 Hour - 120 Day Belt Warranty
Deck Warranty
Lifetime on the leading edge
Hydraulic Drive Warranty
3 Year / 750 Hour
Control Panel Warranty
3 Year
