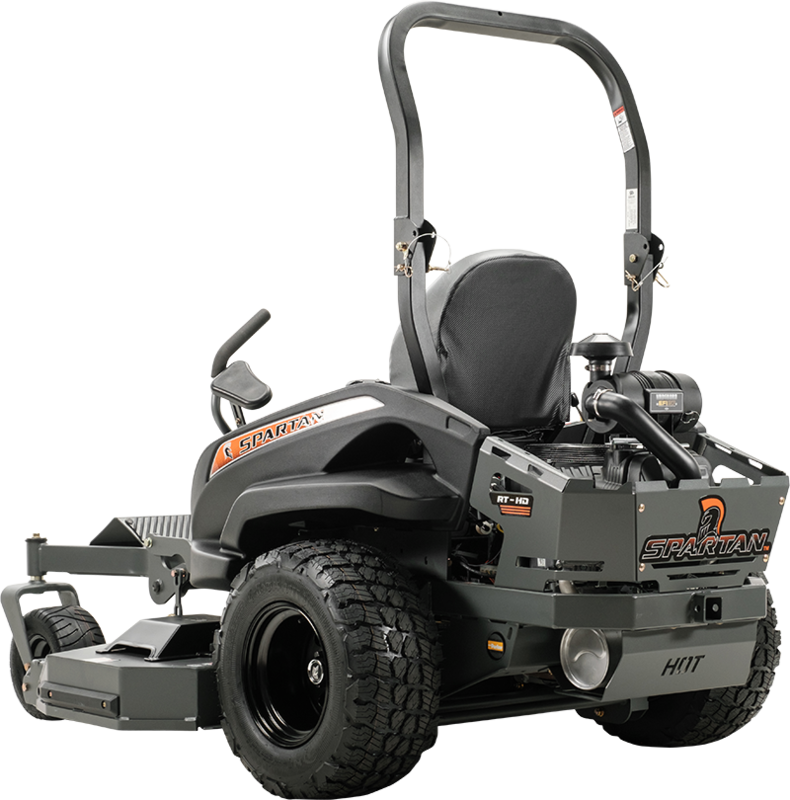

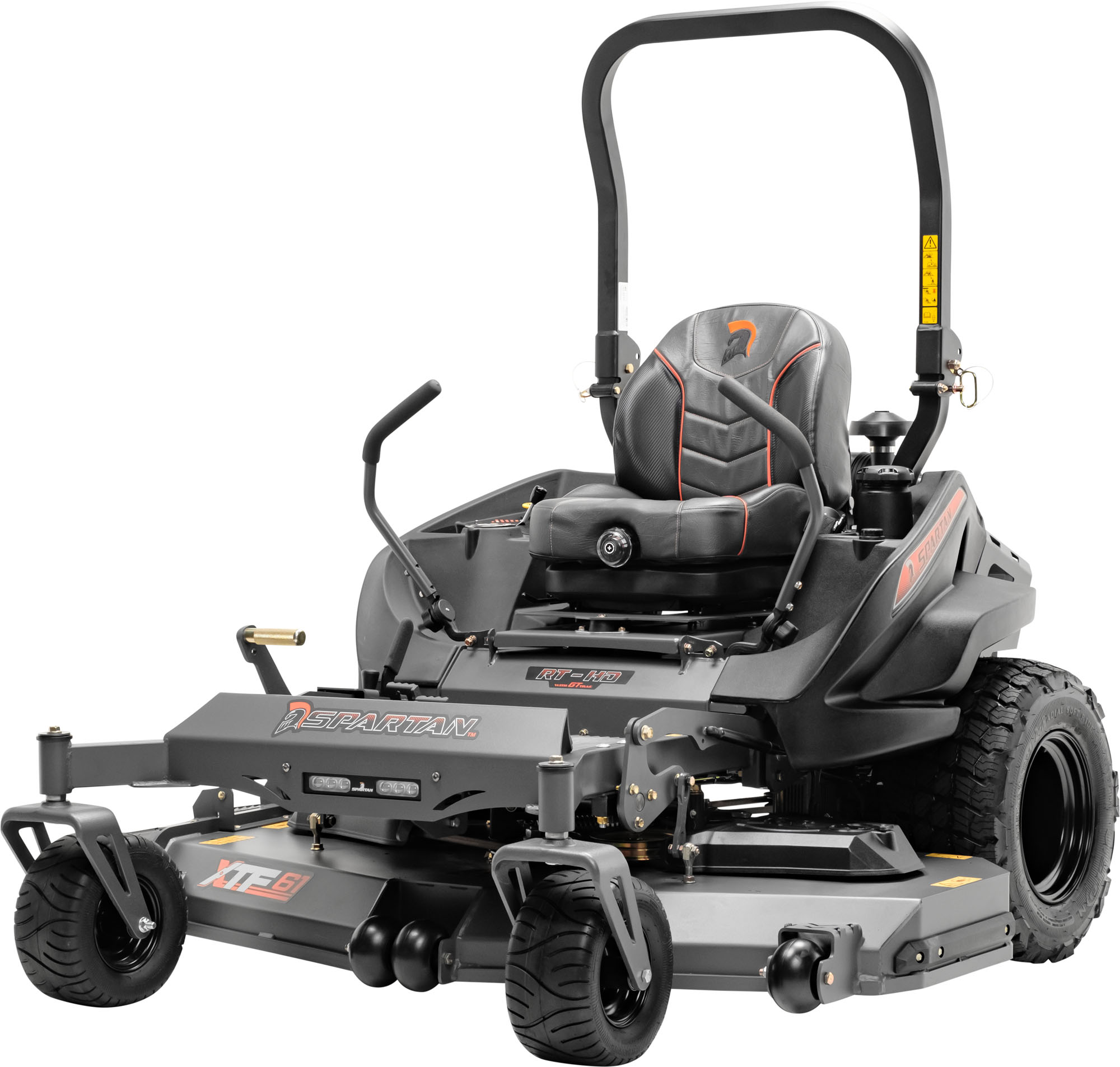

Spartan RT-HD

$12,759.00*

*Prices subject to change. Please contact for latest pricing.

Contact us for price

Stock status: Call Store for Availability

54″ // 61″ // 72″

ENGINE OPTIONS

Kawasaki FX1000 – 999cc – 35 HP (54″, 61″, & 72″)

Vanguard® Big Block EFI  – 993cc – 37 HP (61″ & 72″)


STANDARD ADVANTAGES

6″ Cut Height

4+ Acres

11 MPH Top Speed

9.5 Gal Fuel Capacity

Parker HTJ 12cc Transmission

24″ Rear Radial Tires

Front & Rear Radial Tires

Ultra-Premium Dymetrol® Adjustable 3″ Travel Seat

TecsPak® Under Seat

360-Degree Seat Plate

NEW Magnetic Pin Height Adjustment

Adjustable Steering Arms

Folding ROPS

Split Beam LED Light Bar

GT Trac Stabilization

18,500 FPM Blade Tip Speed

Protective Side Deck Trim

NEW Upgraded Spindles

7-Gauge XTF Deck

2″ Receiver Hitch

Key Switch Panel

Foot Operated Shock Assisted Deck Lift

Foot Operated Parking Brake

12V Outlet

NEW Large Cup Holder

Phone Holder in Console

Storage Tray in Console

Anti-Vibration Floor Mat

Designed with commercial-grade components, the RT-HD is built to last. Contact your nearest dealer to schedule a demo.

*Information posted relates to 2024 model year products.

Call Us Now

Specs

Engine Name
Kawasaki FX1000
Horsepower
37HP
Fuel Capacity
9.5gal
Hydraulic Drive
Parker HTJ Transaxles - 12cc Drive Motors
Hydraulic Drive Torque
Continuous - 262 ft-lb | Max Torque - 406 ft-lb
Hydro Drive Maintenance
1000 Hours Between Oil Changes
Drive Tires
54" - 24x10.50-R12 Radial | 61", 72" - 24x12-R12 Radial
Front Tires
13x6.5-R6 Radial with Optional No Flats, or Tweels
Wheels Type
Steel
Speed (F/R)
Forward - Up to 11mph | Reverse - Up to 5mph
Seat
Full Suspension Seat with Adjustable TecsPak Elastomer supports and 360 degree Floating Seat Platform
Steering Levers
Soft-Touch Knobs to Adjust Forward and Back. Adjustable Up and Down
Control Panel LCD Display
N/A
Control Panel LED Warning Indicators
N/A
Ignition
Key Switch
Auxiliary Power
12v Outlet Next to Phone Holder
Storage
Phone Holder, Cup Holder, and Deep Storage Tray
Hitch
2” Rear Receiver Standard
Deck Sizes
54”, 61”, 72”
Deck Depth
6" Deep, Reinforced 7 Gauge Full-Floating Deck
Deck Lift
Foot Operated with Shock Assist
Deck Adjustment
Magnetic Pin Height Adjustment
Cut Height
1" to 5" with 15 Cut Heights
Blade Spindles
Cast Aluminum, No Maintenance/Sealed Bearings
Parking Brake
Foot Operated
Frame
1.5" by 3" Powder Coated Fusion-Bonded Solid Steel Bridge Frame
Width
54” Deck - 55.5” wide | 61” Deck - 62.5” wide | 72” Deck - 73.5” wide
Weight
54” Deck - 1108lbs | 61” Deck - 1138lbs | 72” Deck - 1170lbs
Length
84”
Height
75" with ROPS Up - 54" with Folding ROPS Down
Engine Warranty
3 Year
Full Warranty
2 Year / Unlimited Hour Commercial - 120 Day Belt Warranty
Deck Warranty
Lifetime on the leading edge
Hydraulic Drive Warranty
3 Year / 1500 Hour
Control Panel Warranty
N/A
