Specs
Engine
<!-- -->
Engine Name
Kawasaki FT730V
Horsepower
24HP
Fuel Capacity
12gal
Drive Line
<!-- -->
Hydraulic Drive
Parker HTE Transaxles - 10cc Drive Motors
Hydraulic Drive Torque
Continuous - 262 ft-lb | Max Torque - 406 ft-lb
Hydro Drive Maintenance
1000 Hours Between Oil Changes

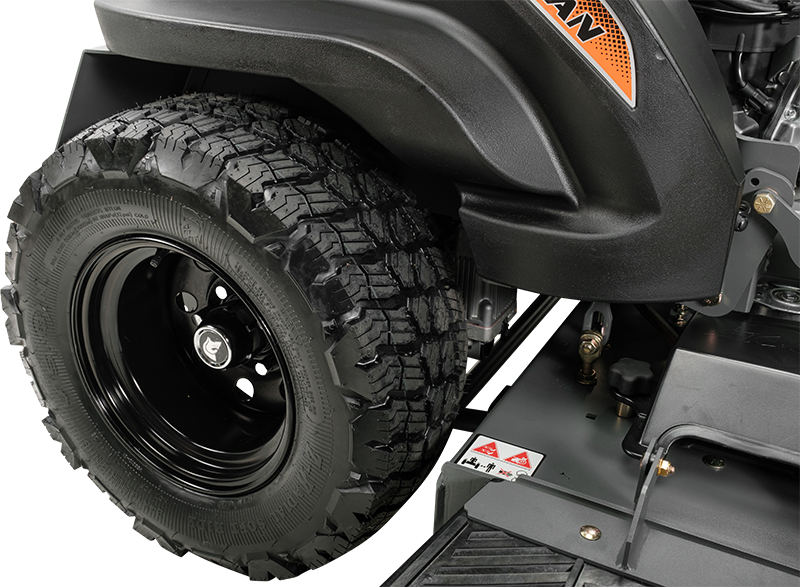

Drive Tires
54" - 24x10.50-R12 Radial | 61" - 24x12-R12 Radial
Front Tires
13x6.5-R6 Smooth Tread with Optional Radial Upgrade, No Flats, or Tweels
Wheels Type
Steel
Speed (F/R)
Forward - Up to 9mph | Reverse - Up to 5mph
Features
<!-- -->

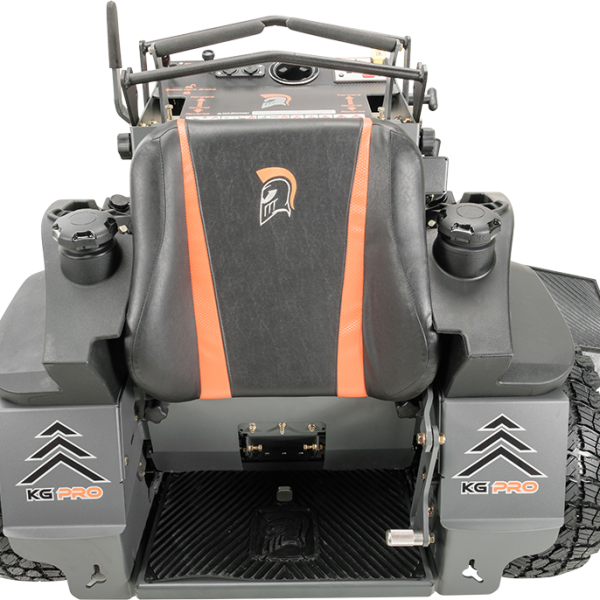

Seat
Smart Ride Technology w/ full suspension operator platform w/ supporting reinforced knee bolstering - adjustable TecsPak Elastomer rolling on radial tires w/ optional fully adjustable suspension seat system.
Steering Levers
Adjustable Speed Stops

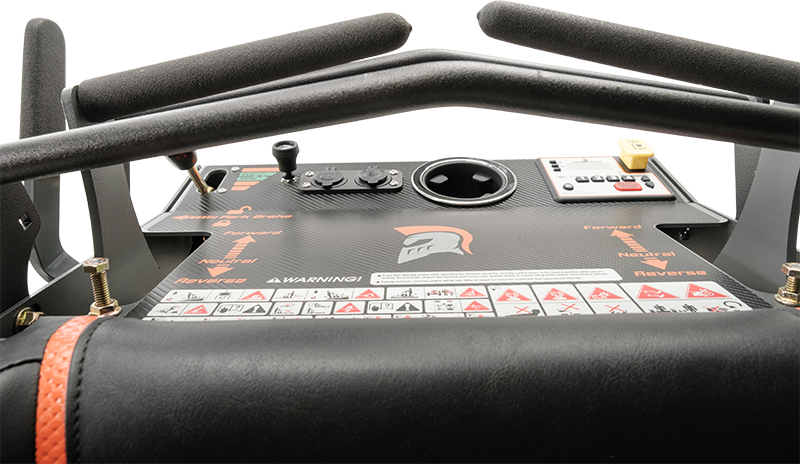

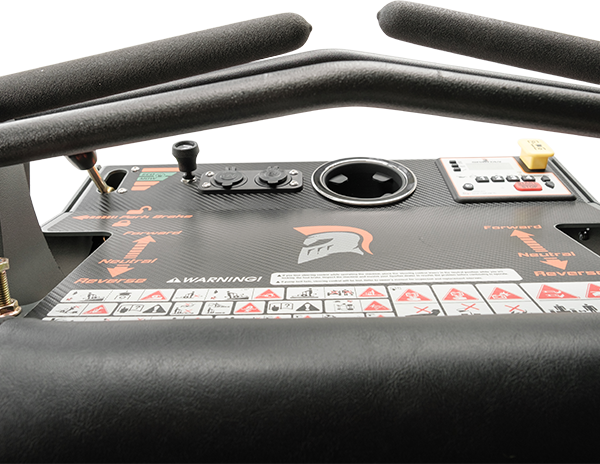

Control Panel LCD Display
Engine Hour Meter - Mower Deck Hour Meter - Tachometer - Low Level Warning Volt Meter - Time Between Oil Change Countdown - Fault Codes
Control Panel LED Warning Indicators
Parking Brake Set - Drive Levers - Operator Present - PTO - Low/Hi Battery Volts - Low Oil PSI
Ignition
Keyless, Personal Code activated
Auxiliary Power
12v Outlet Next to Phone Holder
Storage
Phone Holder, Cup Holder, and Deep Storage Tray
Hitch
N/A
Cutting Deck
<!-- -->
Deck Sizes
54", 61"
Deck Depth
6" Deep, Reinforced 7 Gauge Full-Floating Deck
Deck Lift
Foot Operated with Shock Assist
Deck Adjustment
Precision Deck Height Pin System
Cut Height
Quick Adjust Dial from 1" to 5" with 15 Cut Heights
Blade Spindles
Cast Aluminum, No Maintenance/Sealed Bearings
Parking Brake
Hand Operated
Frame
1.5" by 3" Powder Coated Fusion-Bonded Solid Steel Bridge Frame
Measurements
<!-- -->
Width
54” Deck - 55.5” Wide | 61” Deck - 62.5” Wide
Weight
54” Deck - 1011lbs | 61” Deck - 1044lbs
Length
72.5"
Height
49"
Warranty
<!-- -->
Engine Warranty
3 Year
Full Warranty
2 Year / Unlimited Hour Commercial - 120 Day Belt Warranty
Deck Warranty
Lifetime on the leading edge
Hydraulic Drive Warranty
3 Year / 750 Hour
Control Panel Warranty
3 Year
