Spartan KG-XD

$11,969.00*

*Prices subject to change. Please contact for latest pricing.

Contact us for price

Stock status: Call Store for Availability

54″ // 61″

ENGINE OPTIONS

Kawasaki FX801V – 852cc – 25 HP


STANDARD ADVANTAGES

6″ Cut Height

5+ Acres

9 MPH Top Speed

12 Gal Fuel Capacity

Parker HTJ 12cc Transmission

24″ Rear Radial Tires

Full Beam LED Light Kit

Protective Side Deck Trim

7-Gauge XTF Deck

100-300lb Soft Ride Operator Platform

Magnetic Pin Height Adjustment

Front & Rear Tie Down Locations

Lean-In Bolster

Multi-Function Keypad with Soft Start

Hand Controlled Parking Brake

Foot Assisted Deck Lift

Steel Engine Brush Guard

12V Outlet

Phone Holder in Console

Anti-Vibration Floor Mat

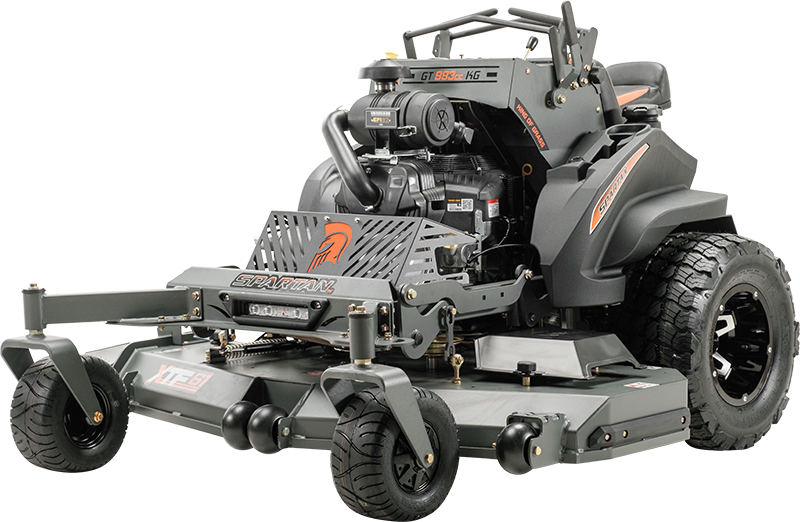

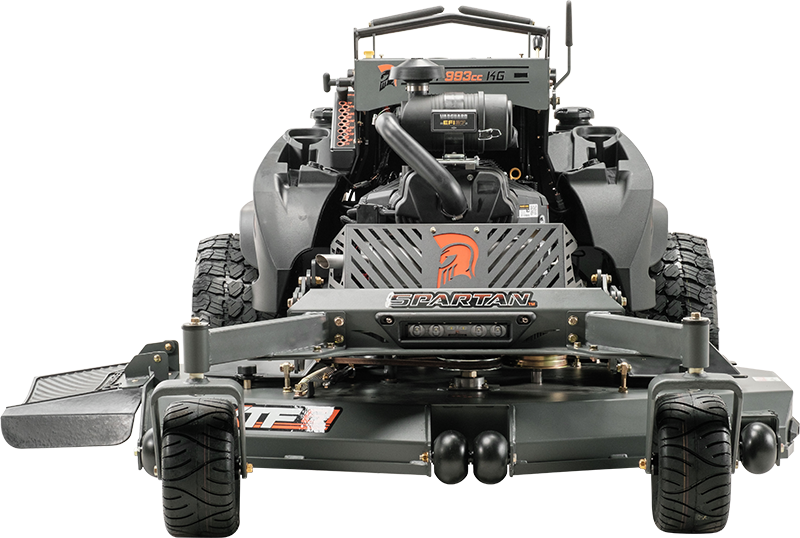

The KG-XD stand-on unit is a solid choice for commercial cutters in the market for performance, durability, and style. Contact your nearest dealer for more information.

Call Us Now

Specs

Engine Name
Kawasaki FX801V
Horsepower
25.5HP
Fuel Capacity
12gal
Hydraulic Drive
Parker HTJ Transaxles - 12cc Drive Motors
Hydraulic Drive Torque
Continuous - 262 ft-lb | Max Torque - 406 ft-lb
Hydro Drive Maintenance
1000 Hours Between Oil Changes
Drive Tires
54" - 24x10.50-R12 Radial | 61" - 24x12-R12 Radial
Front Tires
13x6.5-R6 Radial with Optional No Flats, or Tweels
Wheels Type
Aluminum rear wheels
Speed (F/R)
Forward - Up to 11mph | Reverse - Up to 5mph
Seat
Smart Ride Technology w/ full suspension operator platform w/ supporting reinforced knee bolstering - adjustable TecsPak Elastomer rolling on radial tires w/ optional fully adjustable suspension seat system.
Steering Levers
Adjustable Speed Stops
Control Panel LCD Display
Engine Hour Meter - Mower Deck Hour Meter - Tachometer - Low Level Warning Volt Meter - Time between Oil Change Countdown - Fault Codes
Control Panel LED Warning Indicators
Parking Brake Set - Drive Levers - Operator Present - PTO - Low/Hi Battery Volts - Low Oil PSI
Ignition
Keyless, Personal Code activated
Auxiliary Power
12v Outlet Next to Phone Holder
Storage
Phone Holder, Cup Holder, and Deep Storage Tray
Hitch
N/A
Deck Sizes
54", 61"
Deck Depth
6" Deep, Reinforced 7 Gauge Full-Floating Deck
Deck Lift
Foot Operated with Shock Assist
Deck Adjustment
Precision Deck Height Pin System
Cut Height
Quick Adjust Dial from 1" to 5" with 15 Cut Heights
Blade Spindles
Cast Aluminum, No Maintenance/Sealed Bearings
Parking Brake
Hand Operated
Frame
1.5" by 3" Powder Coated Fusion-Bonded Solid Steel Bridge Frame
Width
54” Deck - 55.5” Wide | 61” Deck - 62.5” Wide
Weight
54” Deck - 1076lbs | 61” Deck - 1109lbs
Length
72.5"
Height
49"
Engine Warranty
3 Year
Full Warranty
3 Year / 500 Hour Residential - 2 Year / Unlimited Hour Commercial - 120 Day Belt Warranty
Deck Warranty
Lifetime on the leading edge
Hydraulic Drive Warranty
3 Year / 1500 Hour
Control Panel Warranty
3 Year
